RTP Pipe (Reinforced Thermoplastic Pipe)
Spoolable RTP pipe for oil & gas gathering, high-pressure water injection, gas transmission and mining slurry. Rated 2.5-32 MPa, -40 degC to +95 degC, DN50-200 mm, delivered in 100-1000 m coils. API 15S / SY/T 6662.2 compliant.
- Overview
- Technical Specifications
- Applications
- FAQ
- Service & Support
- Recommended Products
Overview
- No corrosion, no cathodic protection- CO2, H2S, chlorides and produced water contact only polymer.
- About 90% fewer joints- 100-1000 m coils replace 6-12 m steel joints; less welding, less inspection, fewer leak paths.
- Up to 60% shorter installation- trench-laid, plough-laid or pulled through existing steel lines, with no hot work.
- 50-year design life- rated pressure and temperature held for the life of the line, with stable hydraulics.
- Lower total cost- higher material cost per metre, lower installed and whole-life cost.

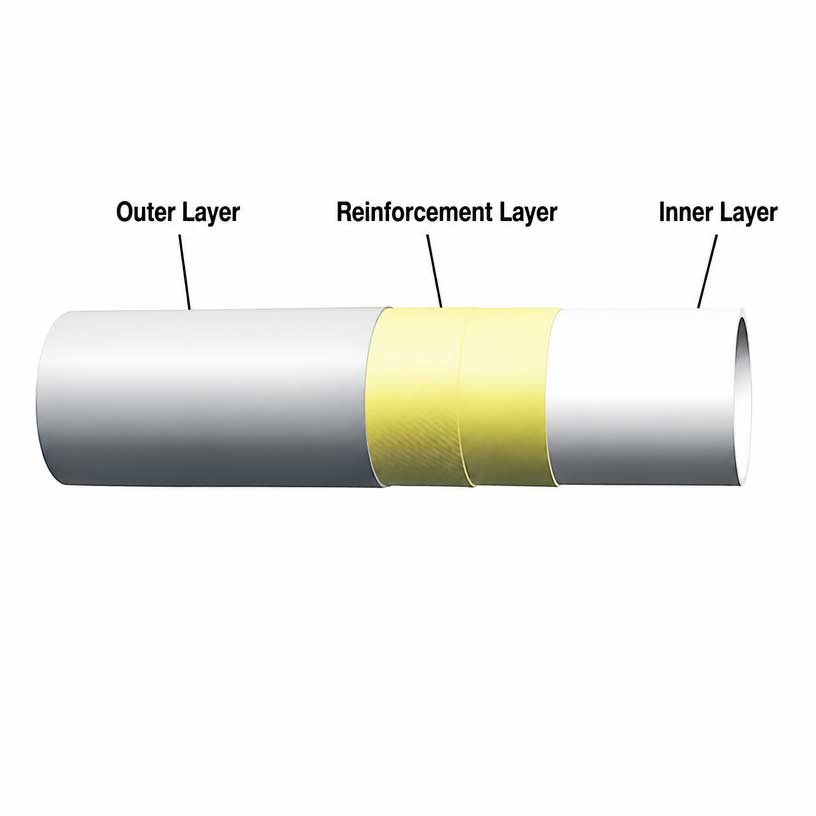

RTP (Reinforced Thermoplastic Pipe) is a spoolable composite line pipe made of three bonded layers:a thermoplastic inner liner, continuous fiber reinforcement, and an HDPE outer jacket. It replaces carbon steel in oil & gas gathering, high-pressure water injection, gas transmission and mining slurry service. With no metal in the flow path it cannot corrode, and because it ships coiled it installs with roughly 90% fewer joints.
Why RTP Instead of Steel Pipe
Feature |
Sanjie RTP Pipe |
Carbon Steel Pipe |
Unreinforced HDPE |
Corrosion resistance |
Inherent - no metal in flow path |
Coating, inhibitors, CP required |
Inherent |
Cathodic protection |
Not required |
Required |
Not required |
Working pressure |
2.5 - 32 MPa |
Project-dependent |
<= 1.6 MPa typical |
Working temperature |
-40 to +95 degC |
Wall-dependent |
-40 to +60 degC |
Field joints per km |
Approx. 1 - 10 |
Approx. 85 - 165 |
Approx. 10 - 20 |
Service life |
50 years |
15 - 25 years |
50 years |
Technical Specifications
Product Types
Six RTP families, selected by medium, temperature, pressure and abrasion duty.
|
Product Family |
Liner |
Reinforcement |
Working Pressure |
Best-Fit Service |
|
1. Glass Fiber Reinforced RTP |
HDPE / PE-RT |
Glass fiber |
2.5 - 16 MPa |
Water, seawater, produced water, oil-water and gas gathering - the most cost-effective grade |
|
2. Aramid Fiber Reinforced RTP |
PA11/PA12 / PE-RT |
Aramid fiber |
10 - 32 MPa |
High and ultra-high pressure where low weight and a tight bend radius matter |
|
3. Polyester Fiber Reinforced RTP |
HDPE / PE-RT / PA |
Polyester fiber |
2.5 - 32 MPa |
High-pressure water injection, crude oil, gas and multiphase transport |
|
4. Steel Cord Reinforced RTP |
HDPE / PA |
Steel wire / steel cord |
2.5 - 32 MPa |
Maximum pressure capacity where a slightly larger bend radius is acceptable |
|
5. Mining Fiber-Reinforced PE Liquid Pipe |
HDPE |
Fiber reinforcement |
2.5 - 16 MPa |
Mine water supply, drainage and backfill lines with high solids content |
|
6. Mining Wear-Resistant Composite Pipe |
UHMW-PE |
Fiber reinforcement |
2.5 - 16 MPa |
Tailings, slurry and abrasive solid-particle transport |
Key Specifications
|
Nominal outside diameter |
2" - 8" / DN50 - DN200 mm |
|
Working pressure |
2.5 - 32 MPa / 360 - 4,641 PSI |
|
Service temperature |
-40 degC to +95 degC standard |
|
Burst pressure |
2.0 - 2.5 x working pressure |
|
Coil length |
100 - 1,000 m per reel |
|
Minimum bending radius |
15D - 25D of outside diameter |
|
Inner liner |
HDPE, PE-RT, PEX, PA11/PA12, PVDF, UHMW-PE, POE |
|
Reinforcement |
Glass fiber, aramid fiber, polyester fiber, steel cord, carbon fiber |
|
Design service life |
50 years at rated pressure and temperature |
|
Product standards |
API 15S, SY/T 6662.2, GB/T 38725, ASTM F2686, ISO 23936 |
|
Connections |
Flanged, threaded, weld-neck, swaged mechanical end fittings |
|
Lead time |
15 - 30 days |

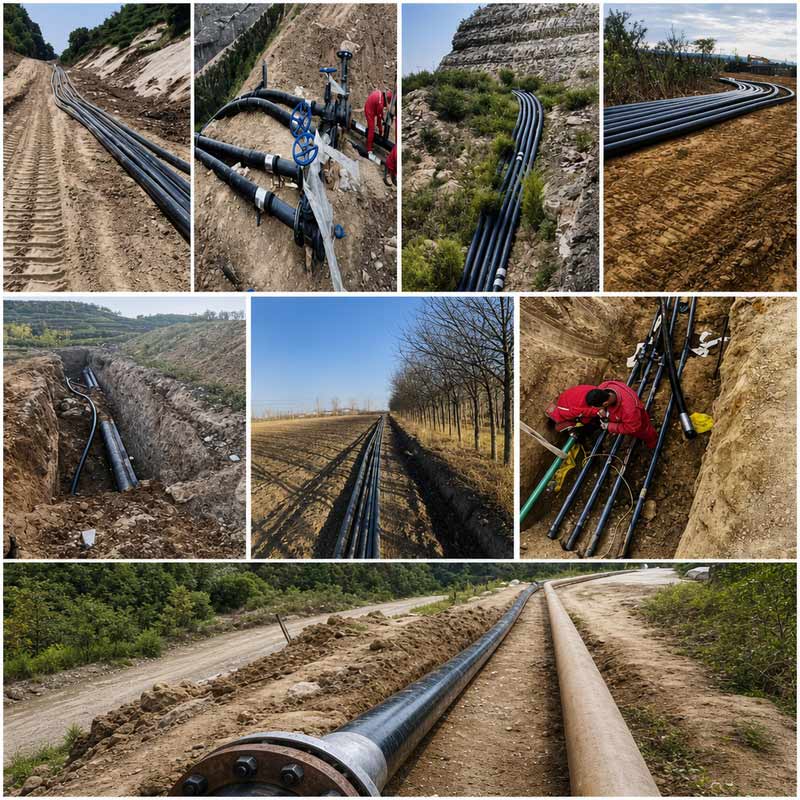

Applications
- Oil & gas gathering and flowlines- wellhead, manifold and processing tie-backs in CO2, H2S and high-chloride service.
- High-pressure water injection and disposal- lines holding 10-32 MPa, immune to the corrosion that drives injection-line failures.
- Sour and wet gas transmission- PA11/PA12 barrier liners limit methane permeation and prevent annulus pressure build-up.
- Mining slurry, tailings and mine water- UHMW-PE liner resists the abrasion that destroys steel.
- Municipal and industrial high-pressure water- low friction loss, no tuberculation, capacity stable for the life of the line.
- Corrosive chemical transfer- PVDF-lined construction for acids, alkalis and brines up to 120 degC.
FAQ
Q: What is the maximum pressure and temperature your RTP can handle?
Standard HDPE and glass fiber construction: 10 MPa (1,450 PSI) at up to 60 degC. With PE-RT or PA liners and aramid fiber reinforcement: 32 MPa (4,641 PSI) and up to 95 degC, compliant with SY/T 6662.2 and API 15S. PVDF-lined pipe extends to 120 degC. Always specify pressure and temperature together - allowable pressure falls as service temperature rises.
Q: What is the service life?
50-year design life at rated working pressure and temperature, supported by long-term hydrostatic pressure (LTHP) testing per ISO 14692 and API 15S.
Q: Can RTP be used for gas transmission?
Yes. For natural gas or CO2 / H2S service we recommend a polyamide (PA11/PA12) or modified barrier liner, which sharply reduces methane permeation and prevents annulus pressure build-up and liner collapse.
Q: How does RTP compare with steel pipe on total cost?
Higher cost per metre, lower total cost. No cathodic protection, no internal lining, no chemical inhibitors, no pigging; roughly 90% fewer joints; installation up to 60% faster. Over a 50-year design life RTP is normally the cheaper option.
Q: What do you need from me to quote?
Five inputs: medium, working temperature, working pressure, required flow rate, and your site or container limit. We return a specification, coil plan and price.
Service & Support
- Free samples - freight at customer's cost
- Engineering drawings, sizing and pressure rating calculation
- 100% production QC including hydrostatic proof and burst testing
- Installation training, plus portable hydraulic swaging tools for purchase or rental
- Container-optimized delivery in 15-30 days; EXW, FOB, CIF, DDP
- OEM / ODM - custom liner, reinforcement, pressure class, diameter and coil length
Send us your inputs and we will return a specification, coil plan and quotation.Email [email protected] or WhatsApp +86-17772160613.
